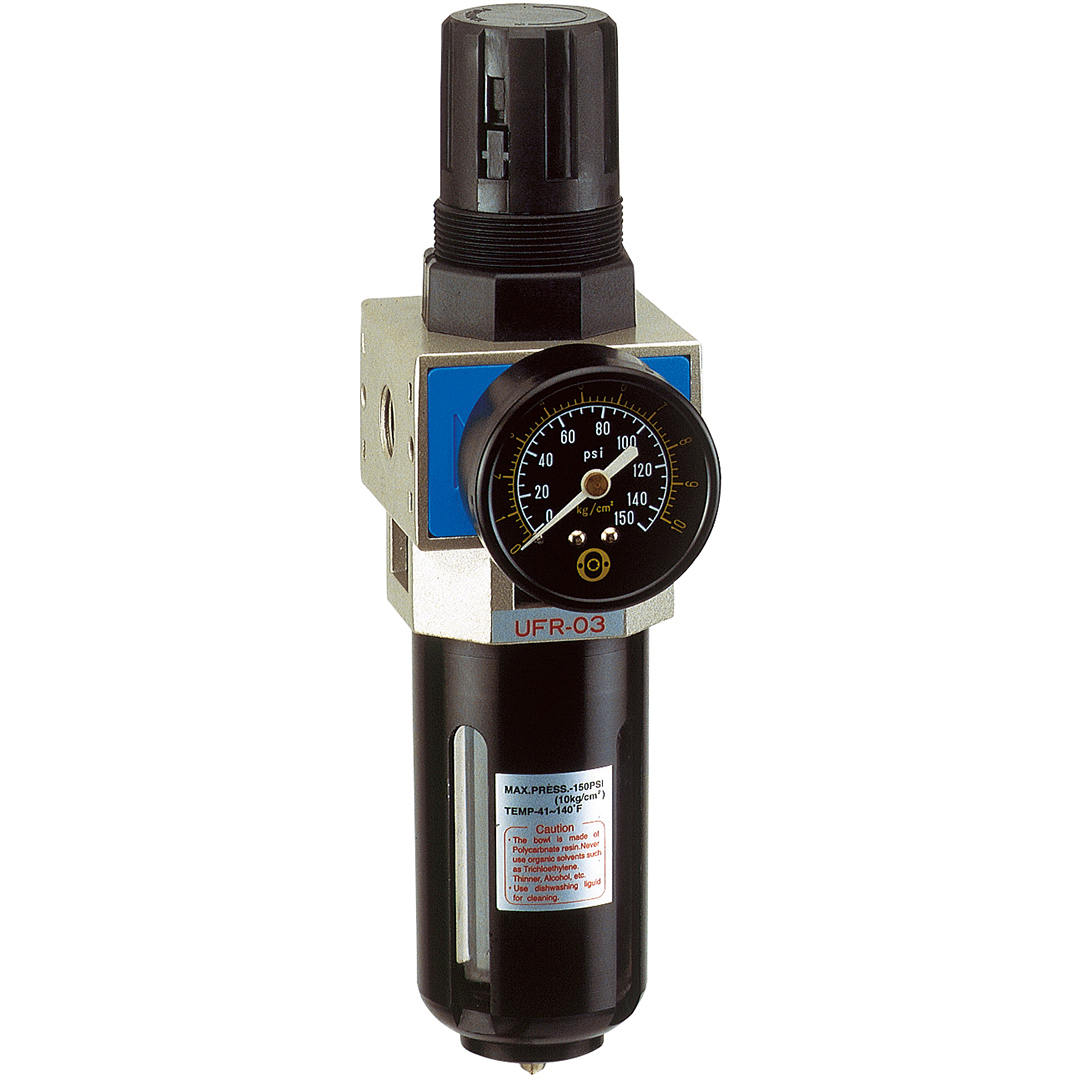

The UFR filter regulator is designed for the treatment of compressed air or neutral gases. Robust aluminium body. Maximum inlet pressure: 10 bar. Supplied with mounting bracket and pressure gauge indicating the downstream pressure.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum flow rate (Nm³/h) | 480.0 |
| DN | DN20 - 3/4'' |
| Face to Face (mm) | 109.5 |
| Filtration (µm) | 5 |
| Fluid | Compressed air / Nitrogen |
| Body material | Aluminium |
| PS (bar) | 10 |
| Connections | BSP FF |
| TS max (°C) | 50 |
| TS min (°C) | 0 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Aluminium DN20 - 3/4'' | 172005 | S1007679 |
€92.90
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN25 - 1'' | 172006 | S1007680 |
€92.90
(excl. btw)
|
add to cart |
